Fresh air inlet ALD
Up to
31m³/h
Air Flow Performance
Up to
70db
Standardised Sound Level Difference
Soundproofed ventilation - the highest soundproofing in its class.

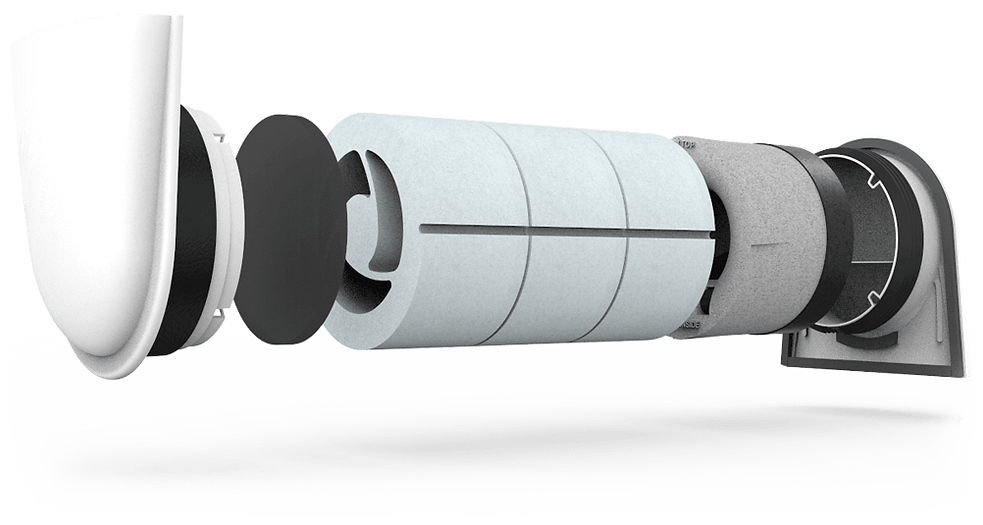

Fresh air inlet ALD
This system helps to reduce noise filtering into your home from outside. This is done by changing the current open vents, to hollow acoustic foam that dampens the noise. This system also prevents sudden blasts of wind from entering your home with the aid of a shutter valve and aerodynamic covers located on the front and back of the vent.
Fresh air inlet ALD

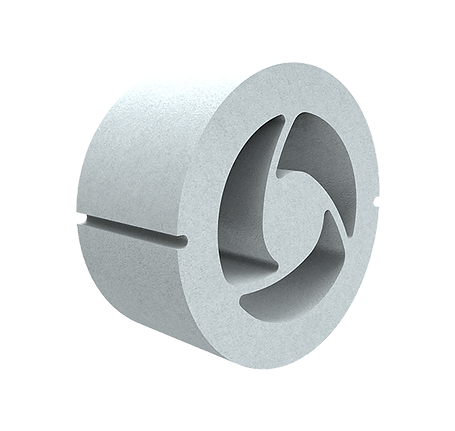

Sound insulation ring
Airflow and sound insulation levels can be adapted to individual requirements during installation using the innovative soundproofing element. The soundproofing element consists of a ring with 3 chambers.
Fresh air inlet ALD

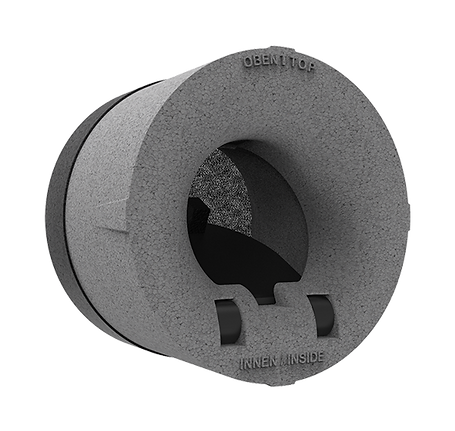

Wind pressure safety device
To avoid a building cooling down during spells of high wind, the wind pressure safety device features a check flap which automatically closes if the airflow volume becomes too high.
Fresh air inlet ALD

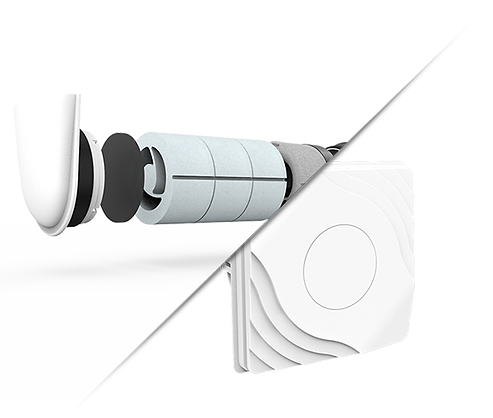

Controlled home ventilation
In combination with a SmartFan XR ventilation system for inside wet rooms, the ALD system provides mechanical ventilation, whereby it is important to ensure that the airflow and positioning of the two systems match each other.

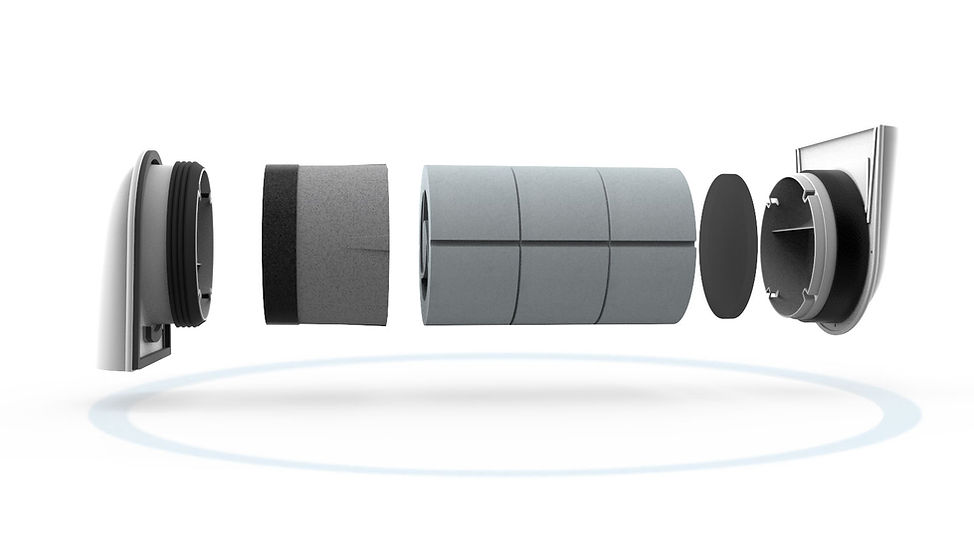

Outside cover with noise deflector
Wind pressure safety device
3K soundproofing element
Soundproofed cover
